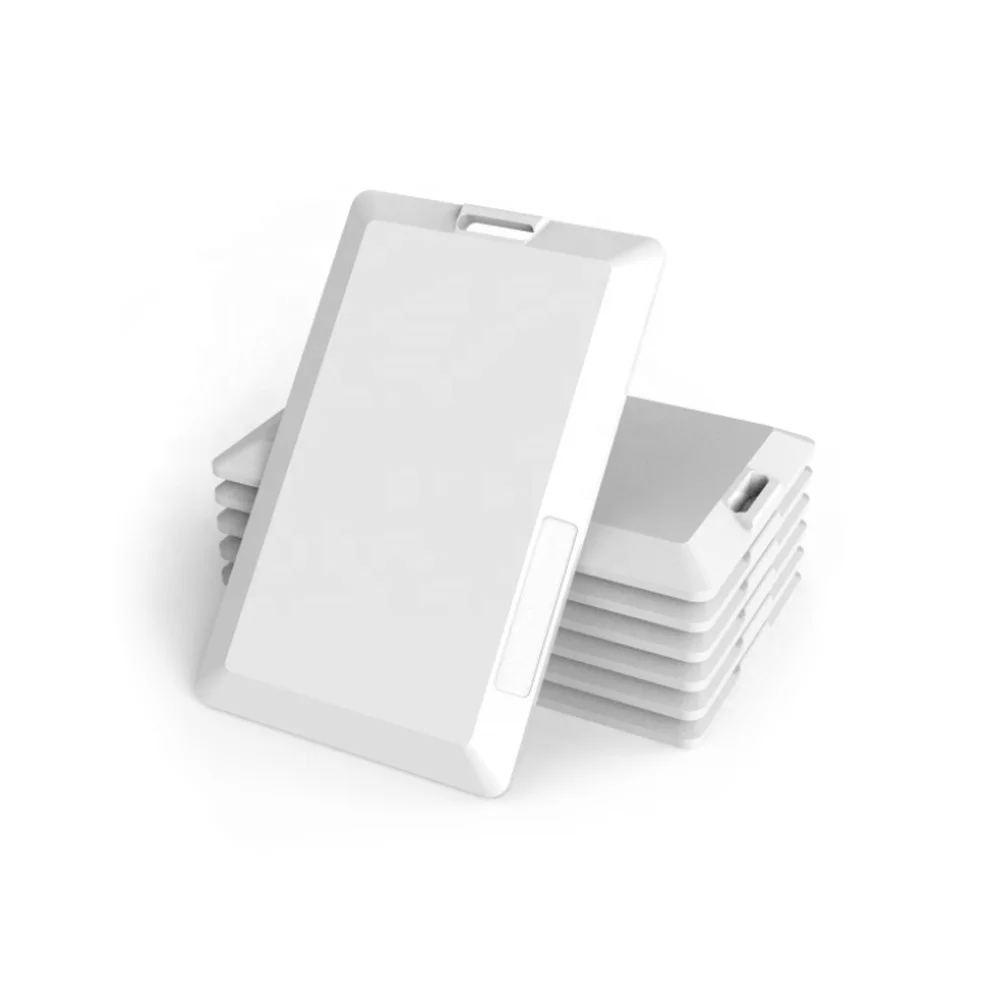

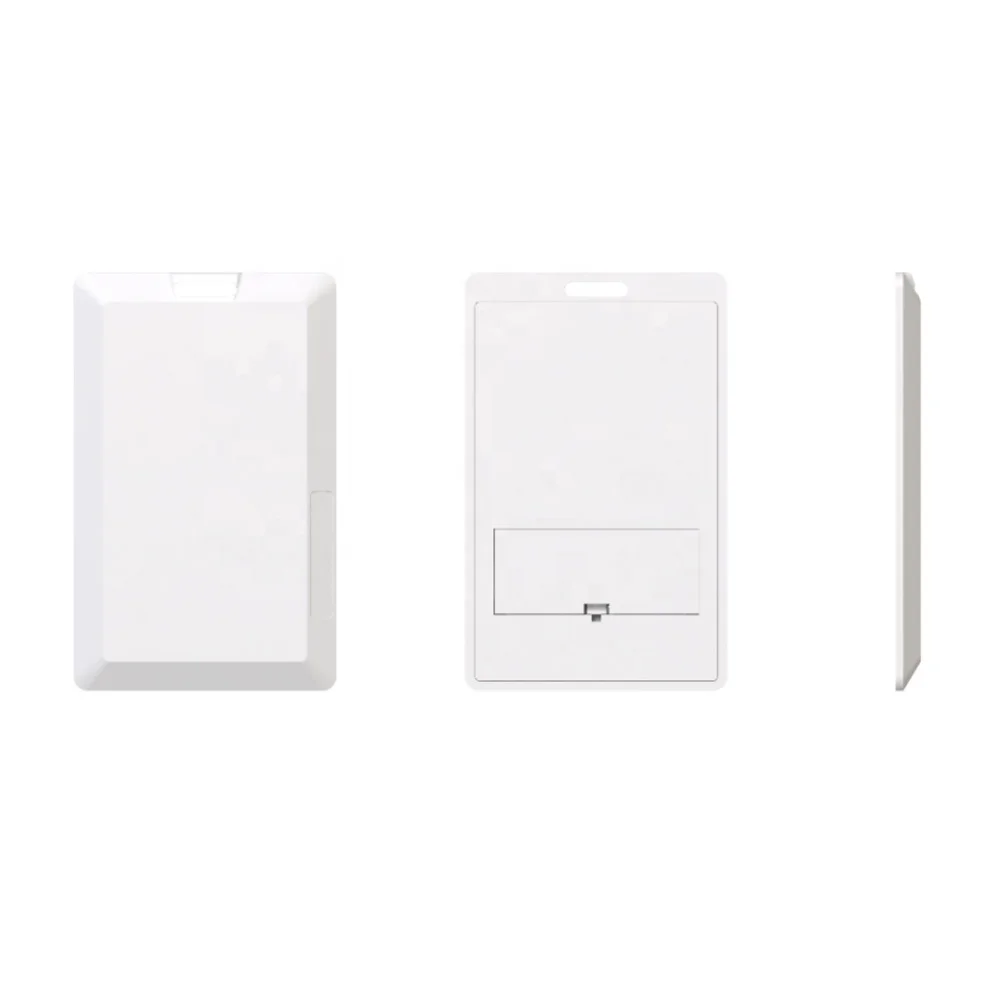

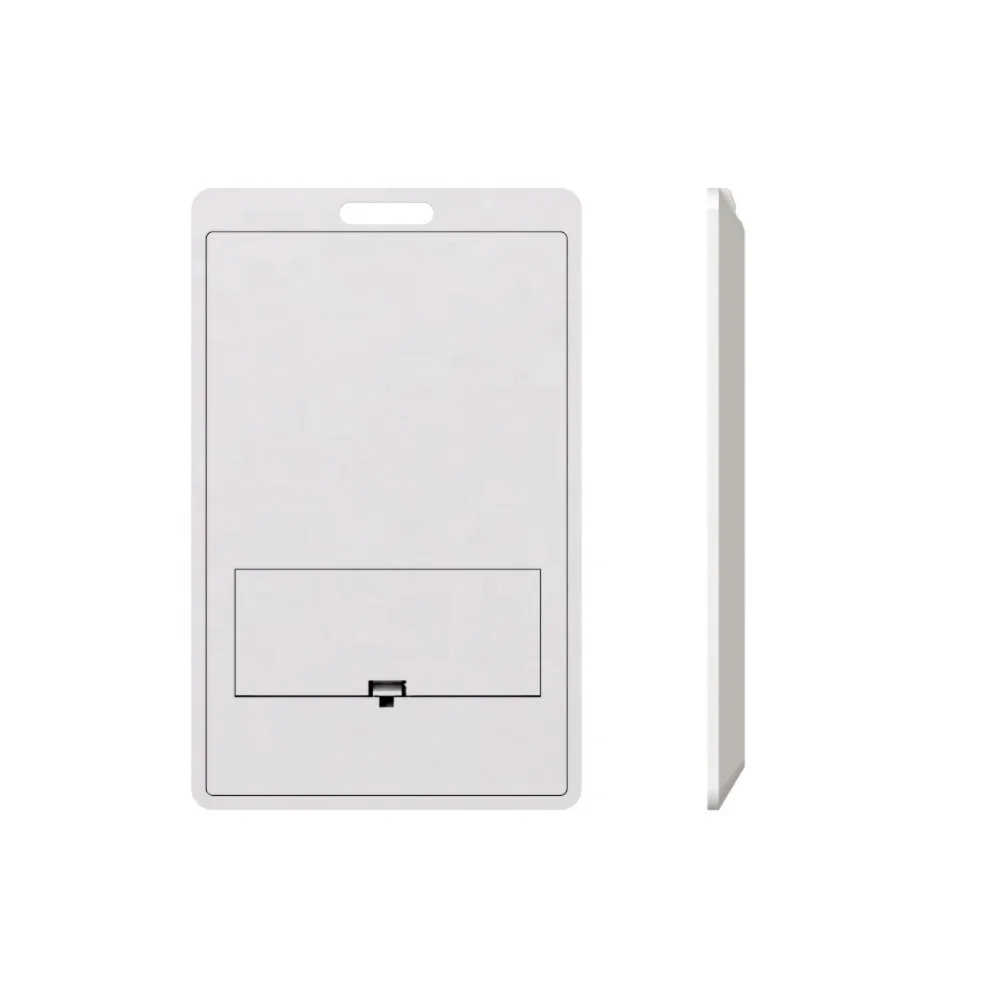

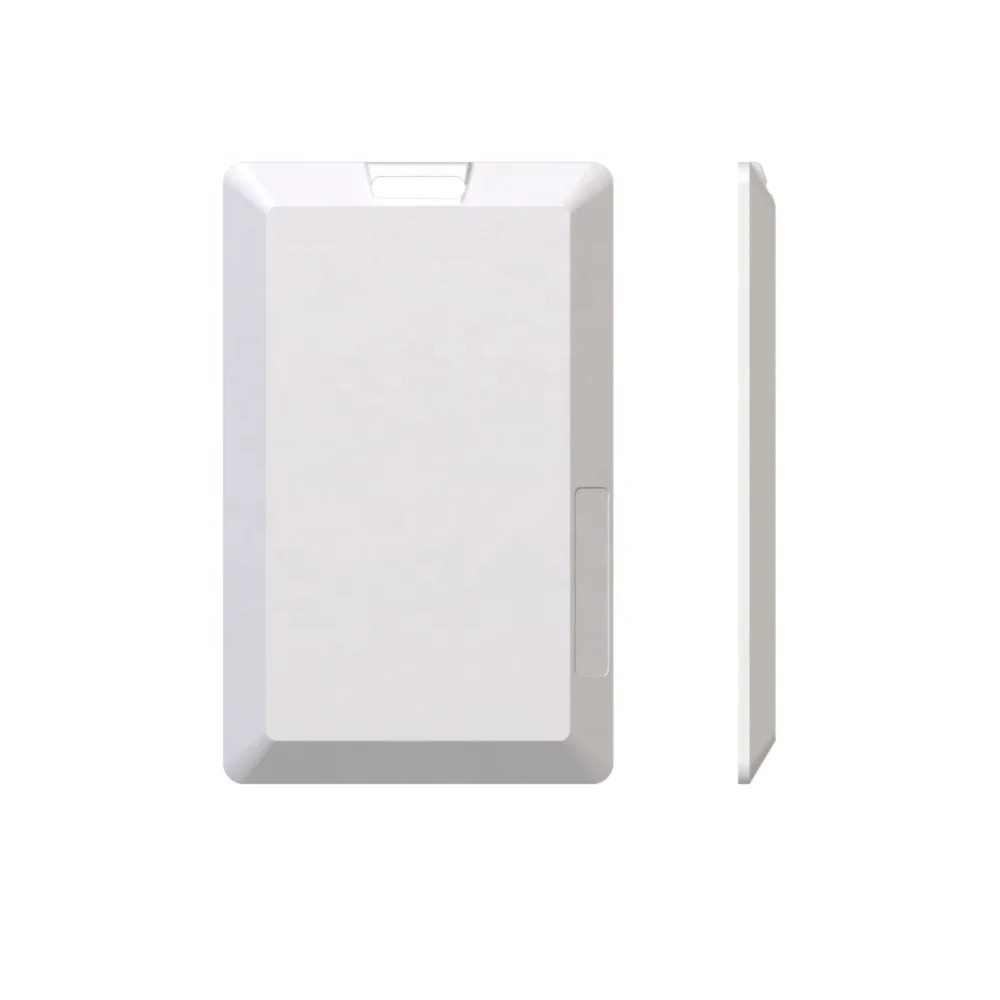

RTLS UWB Tags for Indoor Location Tracking

FOB Reference Price:Get Latest Price
$20.00 - $22.00 / Piece | 100 Piece/Pieces (Min. Order)
Supplier Type:
ODM Retailer Original manufacturer
Shipping:
Support Express · Sea freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Model Number:
DW1000, nRF52832
Place of Origin:
Guangdong, China
Brand Name:
MOKOSMART
Chipset:
DW1000
Application:
Farm,Agriculture,Industrial,Energy
Product name:
DWM1001C
Usage:
Industrial,Agriculture,Smart City,Smart Parking
Certificate:
CE FCC Rohs
Operating Supply Voltage:
2.8 V to 3.6 V
Basic Frequency:
2.4GHZ,6.5GHZ
Interface Type:
I2C, SPI, UART
Supply Current Transmitting:
82 mA
Supply Current Receiving:
134 mA
Protocol - Bluetooth, BLE - 802.15.1:
IEEE 802.15.4-2011 UWB
Features:
Ultra-low Power Consumption
Product Certification certification
CE Certified.
Valid from 2016-07-07 until 2049-12-31
FCC Certified.
Valid from 2016-07-07 until 2049-12-31
RoHS Certified.
Valid from 2012-09-26 until 2049-12-31
UL Certified.
Valid from 2018-06-08 until 2049-12-31
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Serial Device Server
Packaging & Delivery
Packaging Details
Inner packing :Vacuum Package
Outer packing:Standard Carton
Or as customer's require
Port
HongKong/ ShenZhen
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 35 To be negotiated
Products Description
Overview

Product Overview

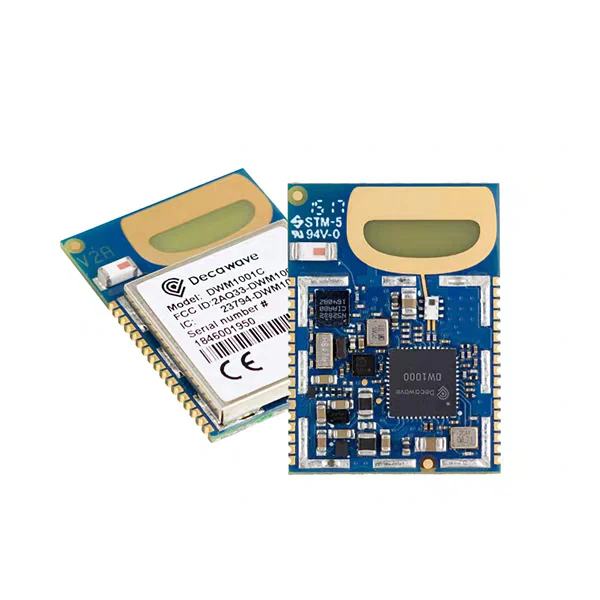

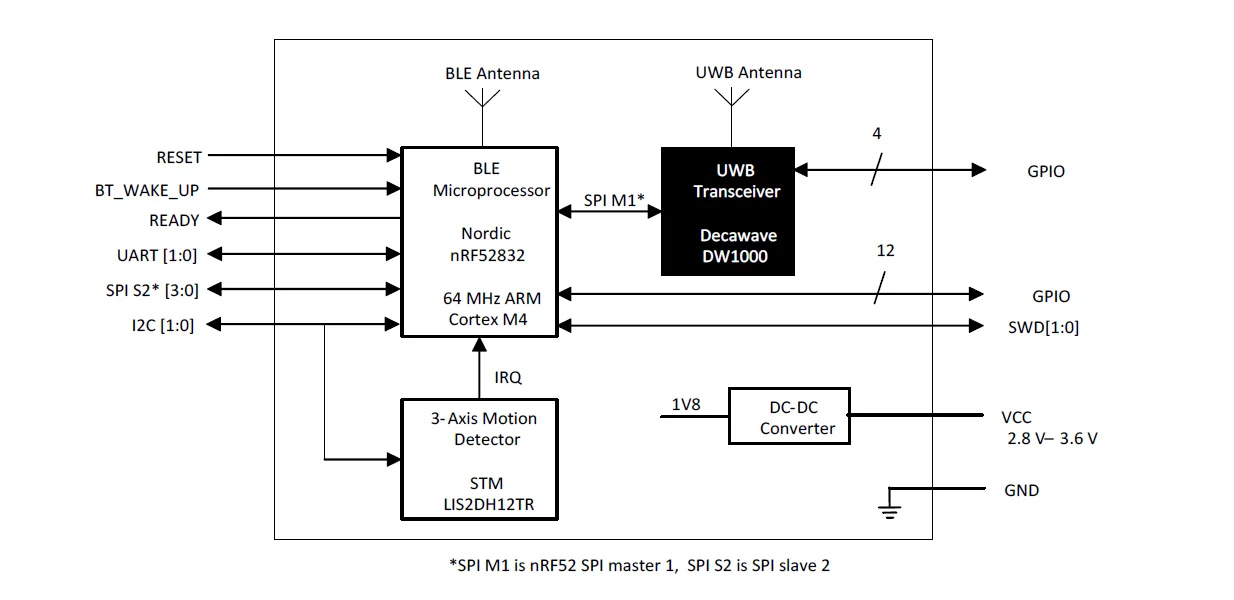

The DWM1001 module is based on Decawave's DW1000 Ultra Wideband (UWB) transceiver IC, which is an IEEE 802.15.4-2011 UWB implementation. It integrates UWB and Bluetooth® antenna, all RF circuitry, Nordic Semiconductor nRF52832 and a motion sensor.

Key Features
• Ranging accuracy to within 10cm. • UWB Channel 5 printed PCB antenna (6.5 GHz) • 6.8 Mbps data rate IEEE 802.15.4-2011 UWB compliant • Nordic Semiconductor nRF52832 • Bluetooth® connectivity • Bluetooth® chip antenna • Motion sensor: 3-axis accelerometer • Current consumption optimised for low power sleep mode: <15μA • Supply voltage: 2.8 V to 3.6 V • Size: 19.1 mm x 26.2 mm x 2.6 mm • Modules marked DWM1001C are certified to ETSI, FCC and ISED regulations FCC ID: 2AQ33-DWM1001, IC: 23794-DWM1001 See the module marking section of this datasheet

Key Benefits

• Accelerates design cycle, reduces development costs, shortens time to market • Low-power hardware design enabling longer battery life • SPI, UART, I2C and Bluetooth® to interface DWM1001 to host device • Ready-to-go embedded firmware for Two Way Ranging RTLS application: C API to DWM1001 firmware (available as a library) for user code customisation On-board Bluetooth® SMART for connectivity to phones/tablets/PCs SPI, UART and Bluetooth® APIs to access DWM1001 from an external device See MDEK1001 and PANS on www.decawave.com for additional information
