MOKOSMART Modbus RTU 4G LoRa Modbus Gateway

FOB Reference Price:Get Latest Price
$45.00 - $65.00 / Piece | 10 Piece/Pieces (Min. Order)
Supplier Type:
ODM Retailer Original manufacturer
Shipping:
Support Express · Sea freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Model Number:
MK-DTLORA01H
Place of Origin:
Guangdong, China
Brand Name:
MOKOSMART
Chipset:
MK-DTLORA01H
Application:
Farm,Agriculture,Industrial
Product name:
MK-DTLTE04G
Usage:
Industrial,Agriculture,Smart City,Smart Parking
Certificate:
CE FCC Rosh
Baud rate:
RS232/RS485:2400-115200bps
Self-checking Function:
Support
Features:
Ultra-low Power Consumption
Product Certification certification
CE Certified.
Valid from 2016-07-07 until 2049-12-31
FCC Certified.
Valid from 2016-07-07 until 2049-12-31
RoHS Certified.
Valid from 2012-09-26 until 2049-12-31
UL Certified.
Valid from 2018-06-08 until 2049-12-31
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Serial Device Server
Packaging & Delivery
Packaging Details
Inner packing :Vacuum Package
Outer packing:Standard Carton
Or as customer's require
Port
HongKong/ ShenZhen
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 35 To be negotiated
Products Description
Overview

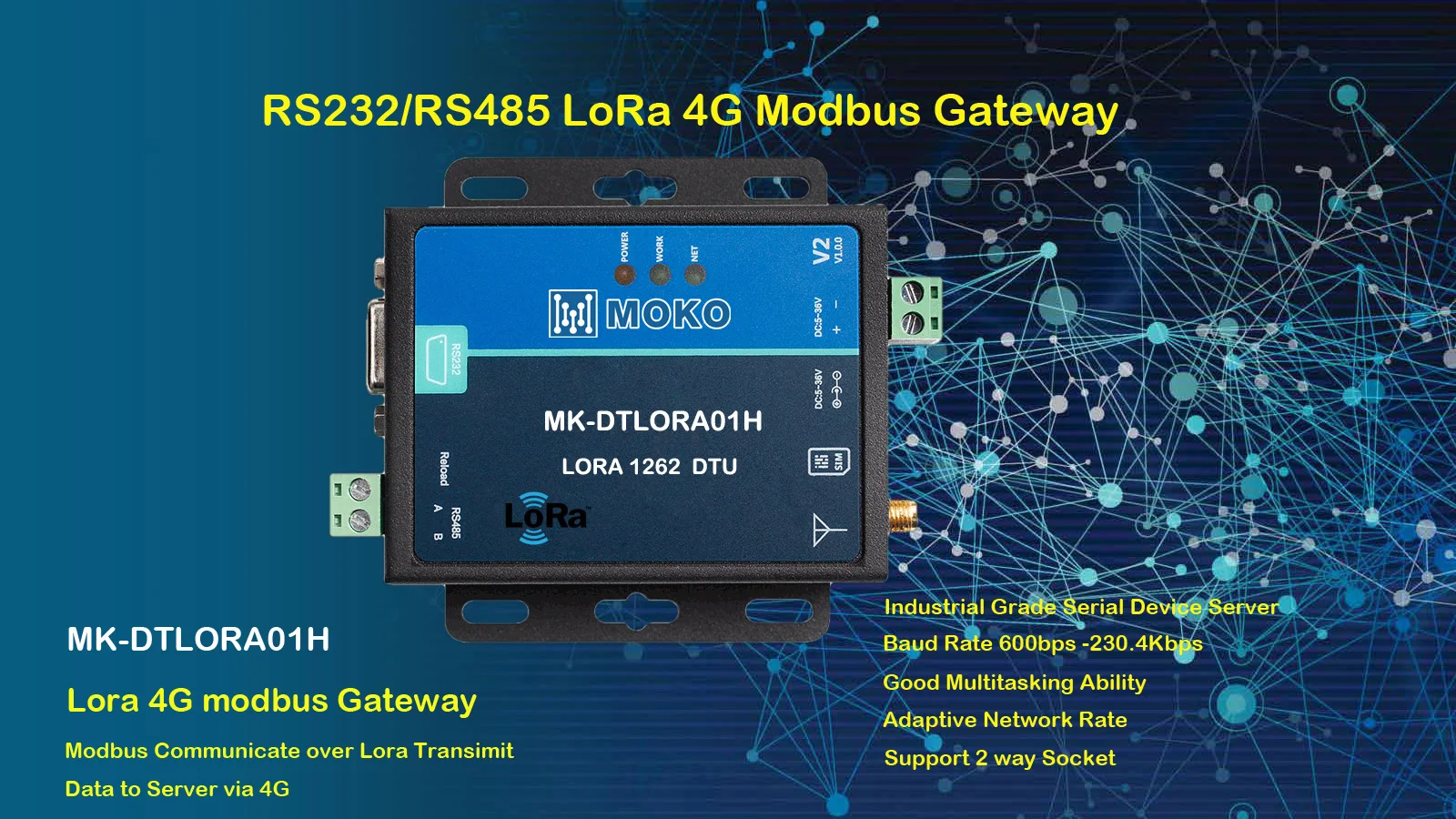

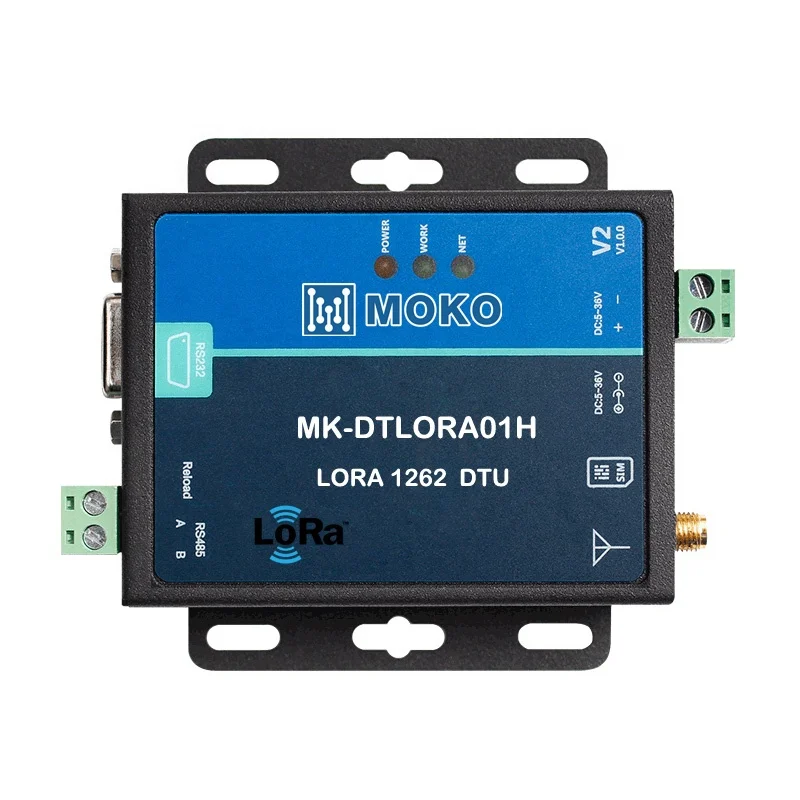

MK-DTLORA01H -------The LoRa 4G Modbus Gateway

Wireless communication technology especially the rise of Wi-Fi technology provides new opportunities to industrial communication
application .The industrial Wi-Fi serial server products developed by the MOKOSMART are designed for the specific needs of industrial users.

MK-DTLORA01H,theLoRa 4G modbus gateway with build-in LoRa and 4G module and integrates modbus RTU protocol, specially used for industry communication. As a modbus master, it can read slave (sensor, meter, PLC, controller etc.) wirelessly via LoRa, and connect server
via 4G for remote data transmission.

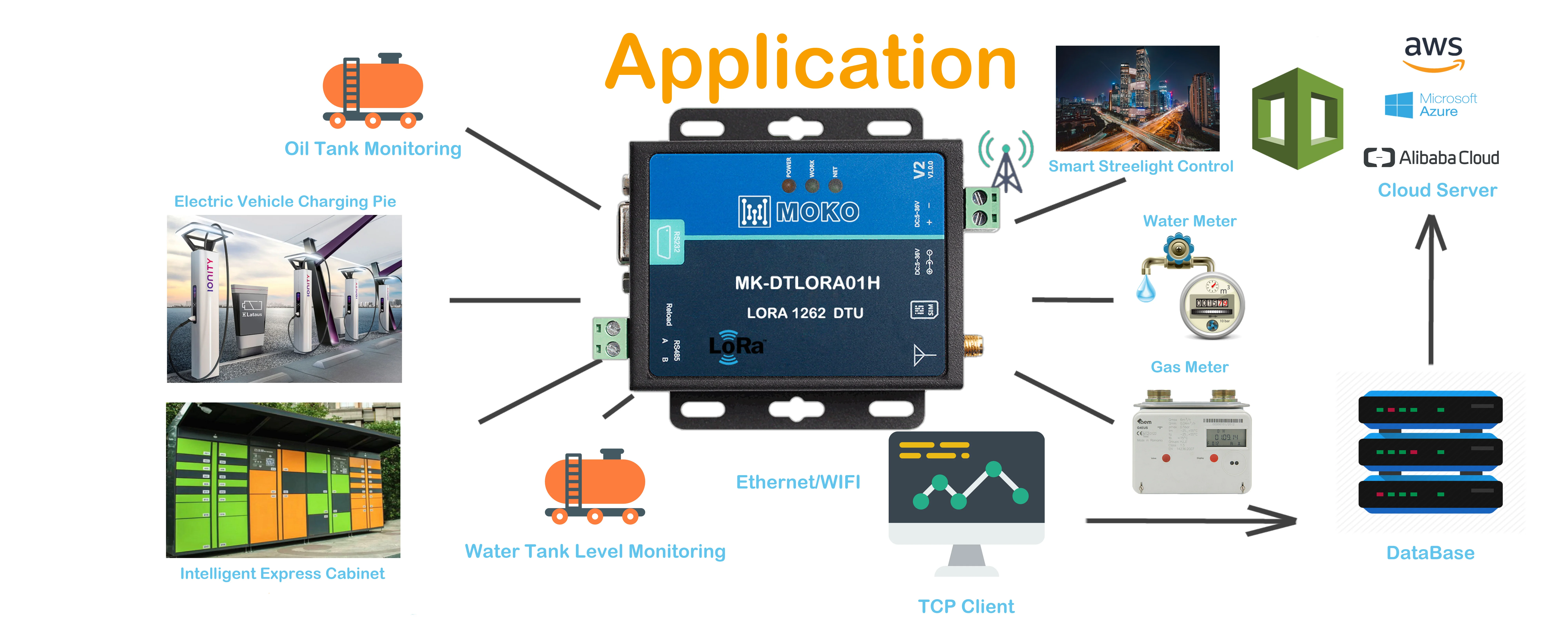

Now the MK-DTLORA01H can be widely used in industrial automatic control, base station / computer room monitoring, environmental
monitoring, water conservancy project, power industries, agriculture, etc.


Characteristic

* Adopted highly integrated industrial 32-bit ARM MCU
* Reliable performance with built-in double watchdog, 24×7 operation
* Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
* USB configuration port, easy use configuration tool
* Optional Built-in battery with long cycle life, 10-20 hours

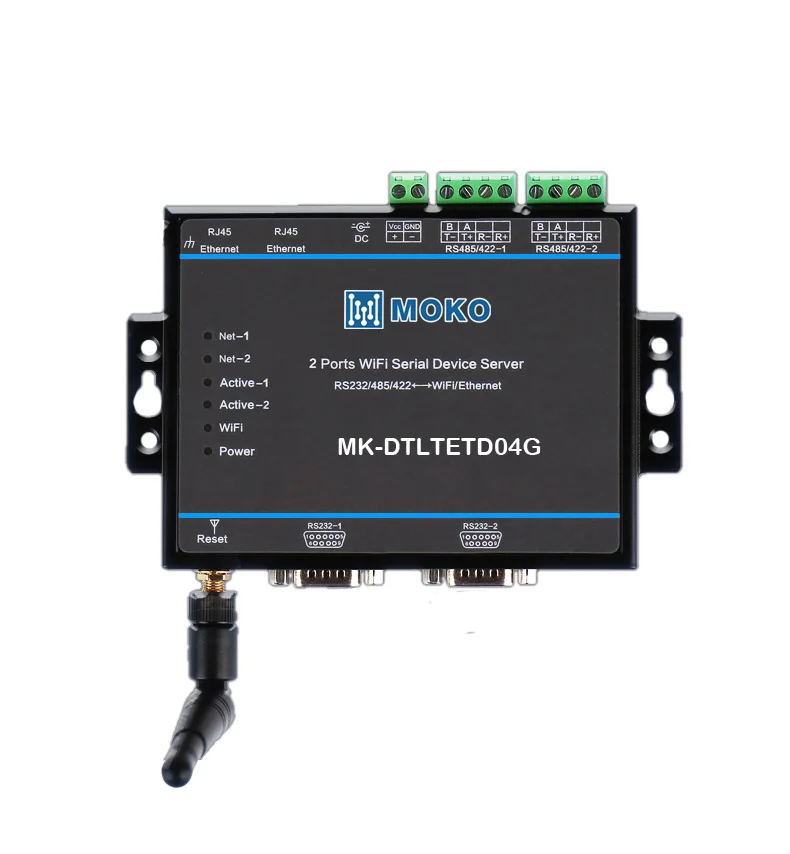

MOKO MK-DTLTETD04G M2M Modbus RS485 GSM GPRS 3G 4G DTU RTU Serial Device Modem
Features
Built In 1.5kV Magnetic Isolation Protection
Network
Lora: LoRa, 868/915 MHz
4G:FDD LTE(4G), CAT1
Power supply
9-28V DC (Standard adapter: DC 12V/1.5A)
Serial Standards
RS-232, RS-485
SIM/UIM
Standard user card interface
Battery(otional)
lithium-polymer, 1000mAh/3.7V,life:8-20 hours
Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Baudrate
50 bps to 921.6 kbps
Parameters
