M2M Iot Telemetry Scada Modbus RS485 To GSM GPRS 3g 4g Wifi RTU DTU Modem Module Device Data Logger Gateway

FOB Reference Price:Get Latest Price
$65.00 - $100.00 / Piece | 10 Piece/Pieces (Min. Order)
Supplier Type:
ODM Retailer Original manufacturer
Shipping:
Support Express · Sea freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Model Number:
MK-DTLTE04G
Place of Origin:
Guangdong, China
Brand Name:
MOKOSMART
Chipset:
BG95
Application:
Farm,Agriculture,Industrial
Product name:
MK-DTLTE04G
Usage:
Industrial,Agriculture,Smart City,Smart Parking
Certificate:
CE FCC Rosh
Baud rate:
RS232/RS485:2400-115200bps
Self-checking Function:
Support
Features:
Ultra-low Power Consumption
Product Certification certification
CE Certified.
Valid from 2016-07-07 until 2049-12-31
FCC Certified.
Valid from 2016-07-07 until 2049-12-31
RoHS Certified.
Valid from 2012-09-26 until 2049-12-31
UL Certified.
Valid from 2018-06-08 until 2049-12-31
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Serial Device Server
Packaging & Delivery
Packaging Details
Inner packing :Vacuum Package
Outer packing:Standard Carton
Or as customer's require
Port
HongKong/ ShenZhen
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 35 To be negotiated
Products Description
Overview

MK-DTLTETD04G -------The Multiple Port Wi-Fi Serial Server

Wireless communication technology especially the rise of Wi-Fi technology provides new opportunities to industrial communication
application .The industrial Wi-Fi serial server products developed by the MOKOSMART are designed for the specific needs of industrial users.
By IEEE802.11 standard wireless technology.

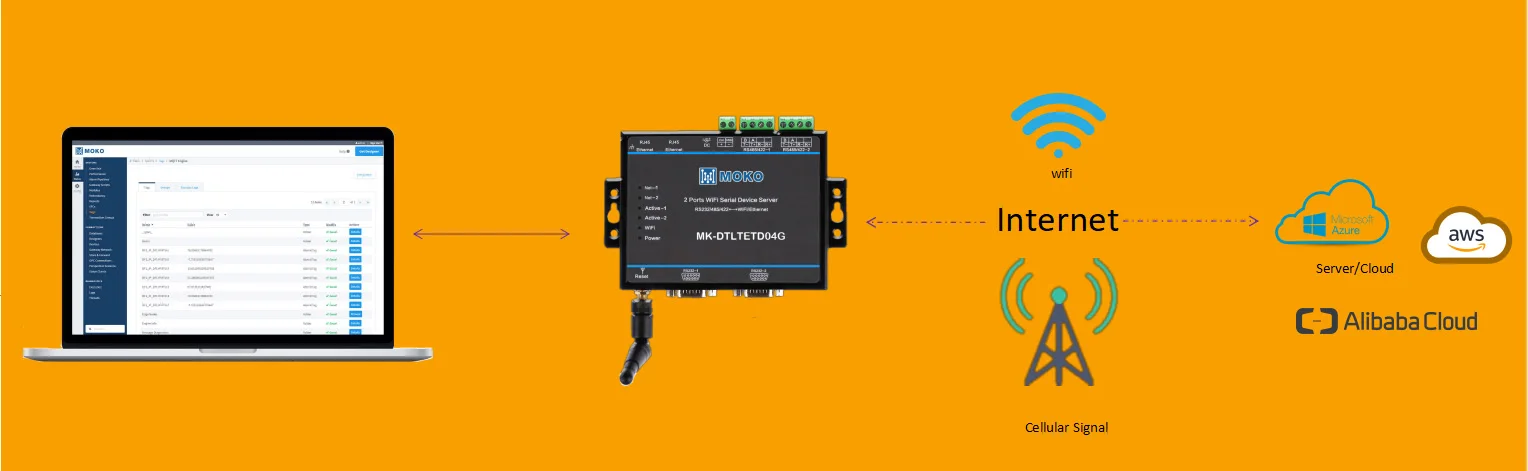

For acquiring the remote operating parameters and process management, MK-DTLTETD04G series IOT M2M Gateway help machine to access internet via GPRS/4G/Wi-Fi and establish TCP/IP connection with server.The MK-DTLTETD04G are the ideal choice for connecting your serial and Ethernet devices, such as PLCs, meters, and sensors, to a wireless LAN. Your communications software will be able to access the serial devices from anywhere over a wirelessLAN.

Moreover, the wireless device servers require fewer cables and are ideal for applications that involve difficult wiring
situations. In Infrastructure Mode or Ad-Hoc Mode, the MK-DTLTETD04G can connect to Wi-Fi networks at offices and factories to allow users to move, or roam, between several APs (access points), and offer an excellent solution for devices that are frequently moved from place to place.

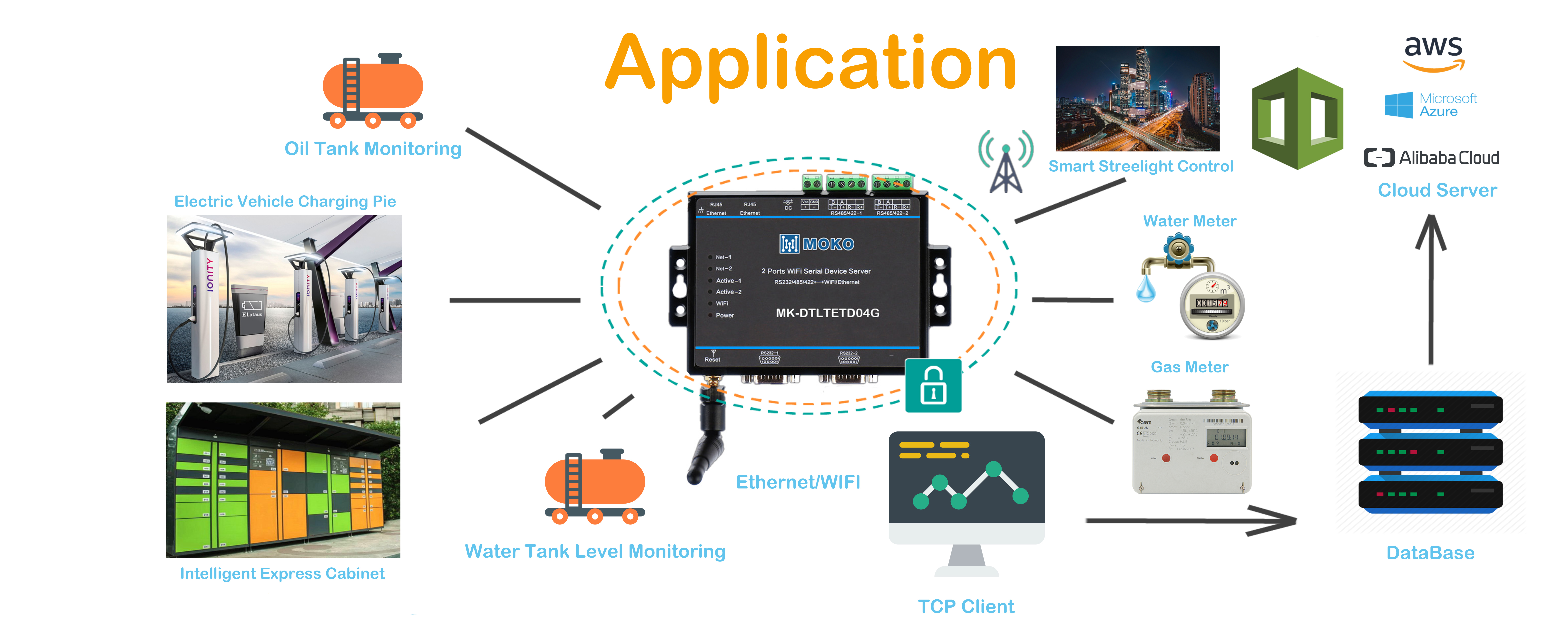

Now the MK-DTLTETD04G can be widely used in industrial automatic control, base station / computer room monitoring, environmental
monitoring, water conservancy project, power industries, agriculture, etc.

Characteristic：

* MIPS MCU with 4MB Flash and 8MB SRAM. Run on eCos
* Support TCP/IP/Telnet /Modbus TCPProtocol
* Support RS232/RS422/RS485 to Ethernet/Wi-Fi Conversion, Serial Speed Upto 460800 bps
* Support STA/AP/AP+STA Mode
* Support Router or Bridge Network Working Mode.
* Support 10/100M Ethernet Auto-Negotiation
* Support Easy ConfigurationThrough a Web Interface or PC IOTManager Tool
* Support Security ProtocolSuch AsSSL/AES/DES3
* Support Web OTA Wirelss Upgrade

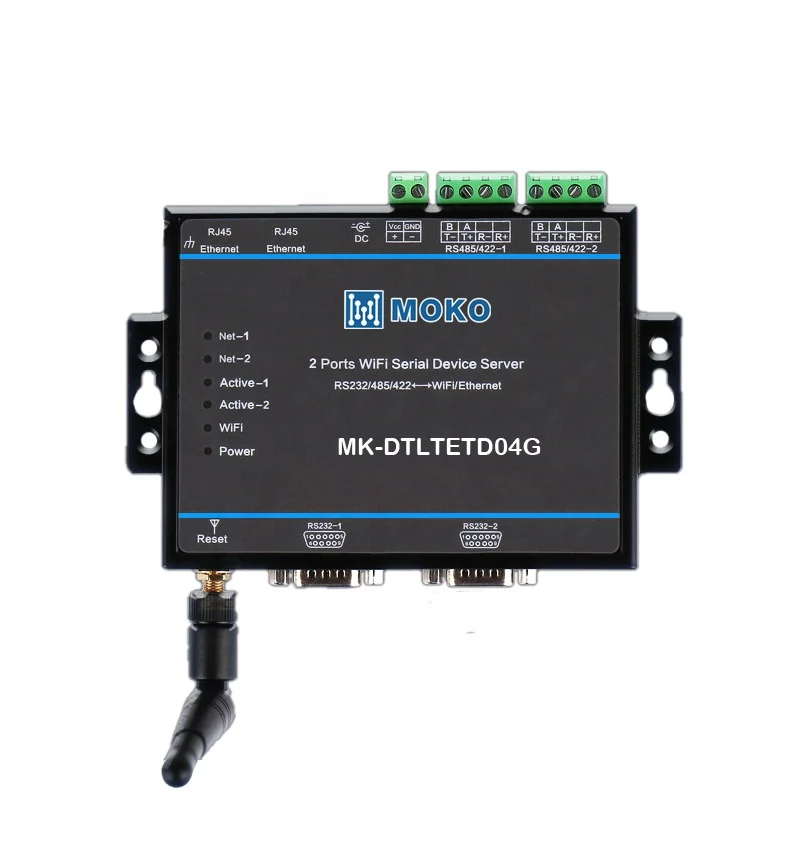

MOKO MK-DTLTETD04G M2M Modbus RS485 GSM GPRS 3G 4G DTU RTU Serial Device Modem
Features
Built In 1.5kV Magnetic Isolation Protection
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
WLAN
802.11a/b/g/n
Serial Standards
RS-232, RS-422, RS-485
transmission Distance
Up to 100 meters (in open areas)
Wireless Security
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal
Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Baudrate
50 bps to 921.6 kbps
Parameters
Ethernet Software Features
Configuration Options
DHCP Option 82, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, Web Console
Windows Real COM Drivers
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows
Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API
Android 3.1.x and later
MIB
Device Settings MIB, RFC1213, RFC1317
Security
HTTPS/SSL, Local Account Accessibility, RADIUS, SSH
Time Management
NTP Client, SNTP Client
Serial Interface
Connector
DB9 male
No. of Ports
MK-DTLTE04G: 1
MK-DTLTETD04G: 2
Operation Modes
Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Pair Connection mode, Ethernet Modem mode, Disabled
Serial Standards
RS-232, RS-422, RS-485
Baudrate
50 bps to 921.6 kbps
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
None, RTS/CTS, XON/XOFF
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
120 ohms
Surge
1 kV
WLAN Interface Features
WLAN Standards
802.11a/b/g/n
Receiver Sensitivity for 802.11a
(measured at 5.680 GHz)
Typ. -91 @ 6 Mbps
Typ. -74 @ 54 Mbps
Receiver Sensitivity for 802.11b
(measured at 2.437 GHz)
Typ. -92 dBm @ 1 Mbps
Typ. -84 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g
(measured at 2.437 GHz)
Typ. -91 dBm @ 6 Mbps
Typ. -73 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n
(5 GHz; measured at 5.680 GHz)
Typ. -89 dBm @ 6.5 Mbps (20 MHz)
Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Typ. -85 dBm @ 13.5 Mbps (40 MHz)
Typ. -67 dBm @ 150 Mbps (40 MHz)
Modulation Type
DSSS or OFDM
Transmission Distance
Up to 100 meters (in open areas)
Transmission Rate
802.11a/g: 54 Mbps
802.11b: 11 Mbps
802.11n: 6.5 to 150 Mbps
Transmitter Power for 802.11b
16±1.5 dBm @ 1 Mbps
16±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11b
16±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11g
Transmitter Power for 802.11a
15±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz)
16 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (72.2 MHz)
Transmitter Power for 802.11n (5 GHz)
15 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (150 MHz)
Wireless Security
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal
WLAN Modes
Ad-hoc Mode, Infrastructure mode
